Mold Design Services: Creating Reliable Solutions for Injection Molding Production
Professional Mold Design for Efficient Production
In the injection molding industry, mold design is one of the most critical stages that determines the quality, efficiency, and cost of plastic part production. A well-designed mold is not only a tool for forming plastic parts but also the foundation for stable mass production. From product analysis and structural optimization to mold manufacturing and final production validation, professional mold design ensures that every detail meets the requirements of performance, precision, and durability.
At Navimold, we provide professional mold design services for customers from automotive, electronics, industrial, medical, and consumer product industries. Our engineering team combines practical mold-making experience with advanced design technology to transform product concepts and 3D models into reliable injection molding solutions.
DFM Analysis and Product Design Optimization

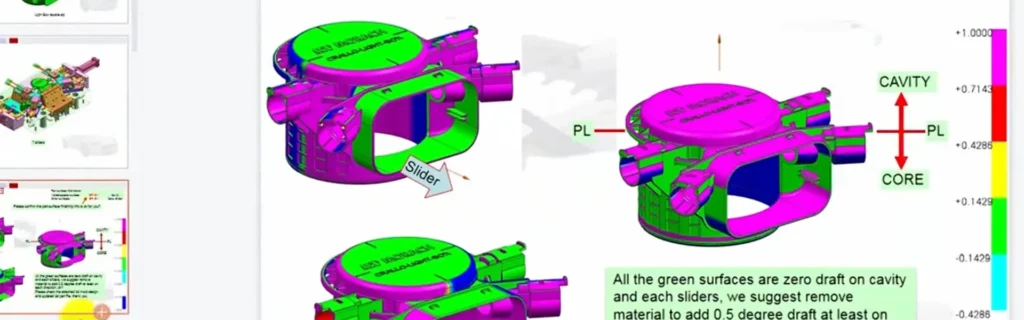

The mold design process starts with a detailed review of the plastic part design. Before creating the mold structure, our engineers conduct DFM (Design for Manufacturing) analysis to identify potential molding issues, including insufficient draft angles, uneven wall thickness, undercuts, sink marks, weld lines, and deformation risks.
Through early engineering analysis and communication, we help customers optimize product designs, improve manufacturability, and reduce potential problems during mold trials and mass production.
Complete Injection Mold Structure Design
After confirming the product design, our engineers develop the complete mold structure based on the part requirements, material characteristics, production volume, and expected mold life.

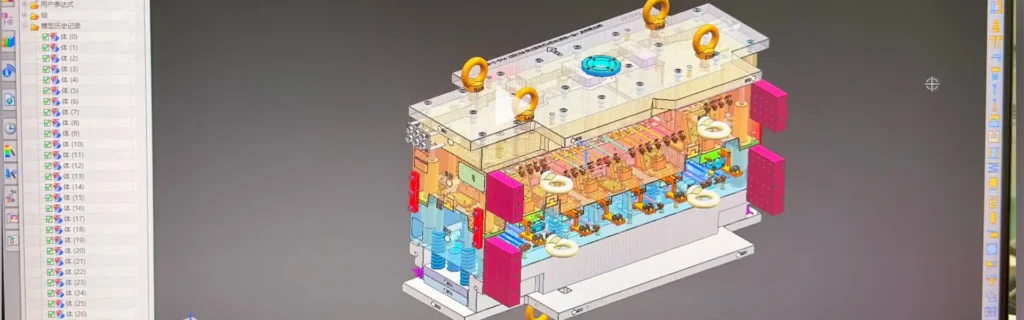

The mold design covers core and cavity layout, mold base selection, parting line design, slider and lifter mechanisms, ejection systems, cooling channels, and hot runner systems. Each component is carefully designed to ensure reliable operation, efficient production cycles, and convenient maintenance.
Mold Flow Analysis and Design Optimization

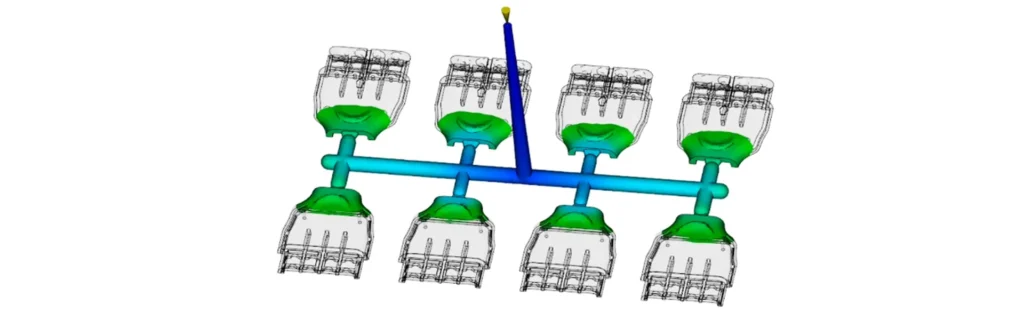

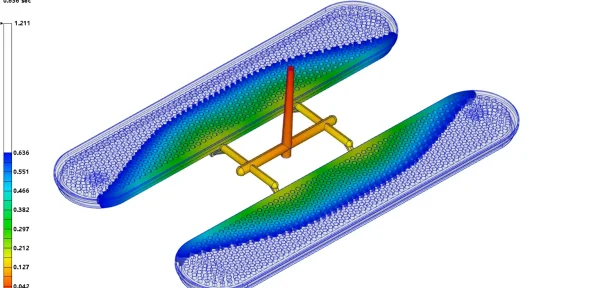

For complex plastic parts, mold flow analysis can be integrated into the design process to predict filling performance, injection pressure, air traps, weld lines, shrinkage, and warpage before mold manufacturing begins.
By optimizing gate location, runner systems, and cooling design during the engineering stage, potential molding defects can be reduced and the success rate of the first mold trial can be improved.
Engineering Documentation and Mold Validation Support
Professional mold design requires complete technical documentation. Navimold provides detailed engineering files, including 3D mold models, 2D drawings, BOM files, mold specifications, and manufacturing documents.
These documents support precision machining, mold assembly, quality inspection, and future maintenance. We also support mold design reviews, trial analysis, dimensional inspection requirements, and production validation processes.
Experienced Mold Design Partner for Global Customers
With experience in automotive injection molds, precision plastic components, insert molding, overmolding, and multi-material applications, Navimold understands the importance of balancing design quality, manufacturing feasibility, and cost control.
Our goal is not only to design a mold that works, but also to develop a reliable manufacturing solution that supports stable production throughout the entire product lifecycle.
Whether you need a new injection mold design, mold optimization, or engineering support for an existing project, Navimold provides professional mold design services to help customers turn product ideas into successful production solutions.
